1. Abstract

ECG Arrhythmia Classification is an AI-based healthcare project that uses machine learning and deep learning to analyze Electrocardiogram (ECG) signals and classify different cardiac rhythm patterns. ECG recordings contain valuable information about the electrical activity of the heart. The proposed system preprocesses ECG signals, removes noise, extracts relevant temporal and morphological features, and applies models such as CNN, LSTM, GRU, Random Forest, or hybrid CNN-LSTM networks. Depending on the selected dataset, the system can classify normal rhythms and predefined arrhythmia categories. The project is intended for research and AI-assisted analysis and is not a replacement for professional cardiac diagnosis.

2. Objectives

To classify ECG signals into predefined rhythm categories.
To detect abnormal ECG patterns using AI.
To preprocess and remove noise from ECG signals.
To extract important temporal and morphological ECG features.
To apply machine learning and deep learning techniques.
To analyze ECG signal patterns automatically.
To reduce repetitive manual ECG analysis.
To provide rapid AI-assisted ECG classification.
To develop a user-friendly ECG prediction interface.
To evaluate the model using appropriate classification metrics.

3. Existing System

Traditional ECG analysis is performed by cardiologists and trained healthcare professionals who examine ECG waveforms and consider patient history and other clinical information.

Disadvantages

Manual ECG interpretation can be time-consuming.
Large numbers of ECG recordings increase clinical workload.
Some abnormal rhythms can be difficult to distinguish.
Interpretation may vary between observers.
Continuous ECG monitoring generates large amounts of data.
Manual analysis is difficult to scale for large datasets.

4. Proposed System

The proposed system uses machine learning and deep learning to automatically analyze ECG signals and classify them according to the classes available in the selected dataset.

Workflow:

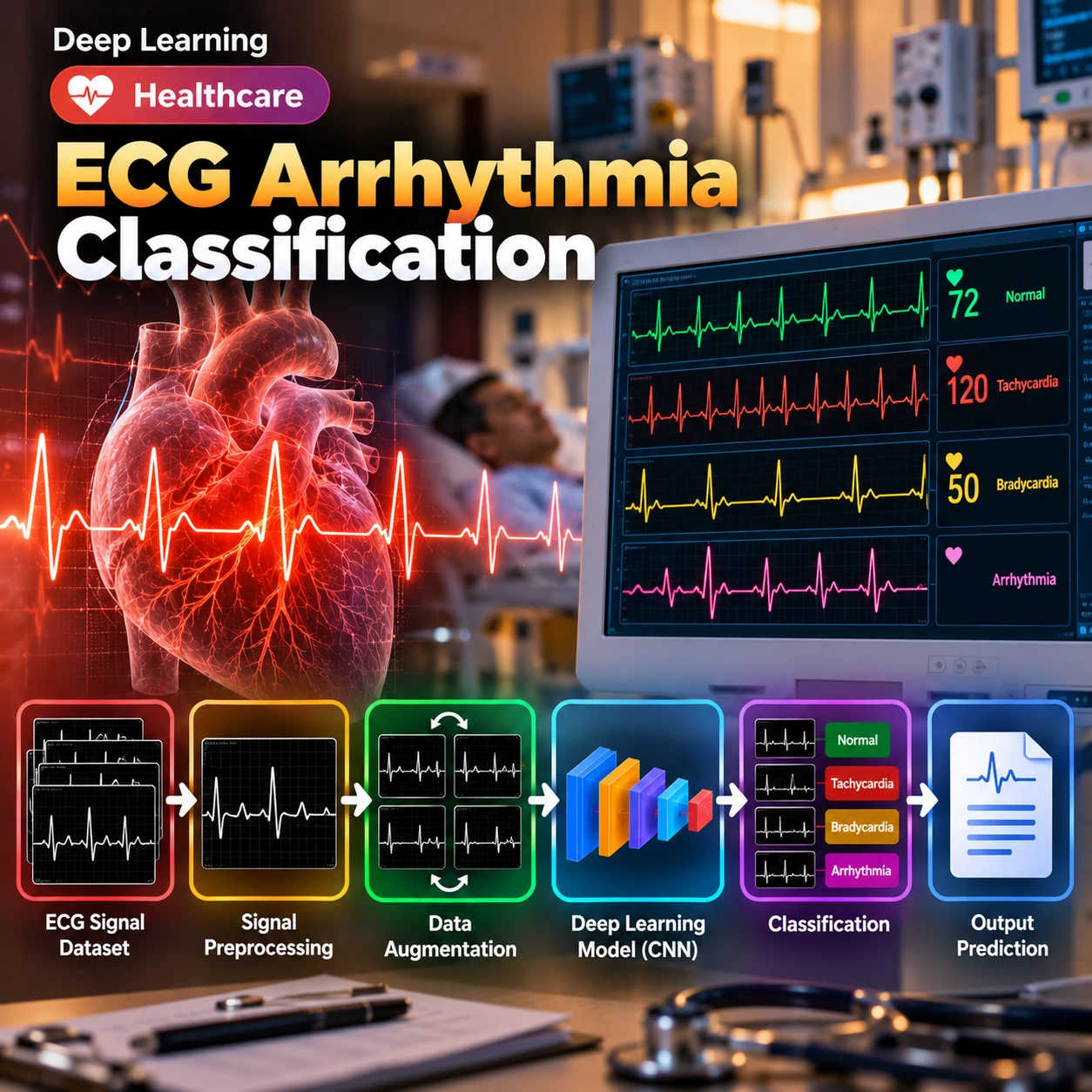

ECG Signal → Noise Removal → Filtering → Segmentation → Feature Extraction → ML/DL Model → Arrhythmia Classification → Result Visualization

Possible models:

Random Forest
Support Vector Machine (SVM)
Logistic Regression
CNN
LSTM
GRU
CNN-LSTM
Transformer-based time-series models

The output classes should match the selected dataset. For example, a dataset may contain Normal Sinus Rhythm, Atrial Fibrillation, Premature Ventricular Contraction, and other rhythm categories.

5. Implementation Procedure

Step 1 – Dataset Collection

Collect labeled ECG recordings from a suitable research dataset containing ECG signals and corresponding rhythm annotations.

Step 2 – ECG Signal Preprocessing

Remove baseline wandering.
Reduce power-line interference.
Apply appropriate band-pass filtering.
Normalize signal amplitude.
Remove or handle noisy segments.
Segment ECG recordings into suitable windows or beats.

Step 3 – Exploratory Data Analysis

Analyze:

ECG signal characteristics
Sampling frequency
Signal duration
Class distribution
Heart-rate patterns
Representative ECG waveforms

Step 4 – Feature Extraction

Extract relevant ECG characteristics such as:

R-R intervals
Heart rate
QRS duration
Waveform morphology
Signal amplitude
Frequency-domain characteristics

Deep-learning models can also learn features directly from raw or minimally processed ECG signals.

Step 5 – Model Development

Develop a suitable machine-learning or deep-learning classifier. CNNs can learn waveform patterns, while LSTM/GRU networks can capture temporal dependencies. A hybrid CNN-LSTM model can combine both capabilities.

Step 6 – Model Training

Train the model using labeled ECG segments and validate it using an independent validation dataset. Patient-level splitting should be considered where appropriate to reduce data leakage between training and testing.

Step 7 – Model Evaluation

Evaluate using:

Accuracy
Precision
Recall/Sensitivity
Specificity
F1-Score
Confusion Matrix
ROC-AUC

For imbalanced ECG datasets, class-wise metrics and macro/weighted averages should also be considered rather than relying only on overall accuracy.

Step 8 – Prediction

Allow the user to provide an ECG recording or signal segment and generate the predicted rhythm category with an appropriate probability/confidence score.

Step 9 – Visualization

Display:

ECG waveform
Predicted rhythm
Prediction probability
Heart-rate information where supported
Confusion matrix
Training/validation curves
Classification metrics

Step 10 – Deployment

Deploy the trained model using Streamlit or Flask with an interactive ECG analysis interface.

6. Software Requirements

Python
VS Code / Jupyter Notebook / Google Colab
NumPy
Pandas
SciPy
Scikit-learn
TensorFlow/Keras or PyTorch
Matplotlib
Seaborn
WFDB where PhysioNet-compatible ECG datasets are used
Streamlit or Flask
ECG dataset
Web browser

7. Hardware Requirements

Intel Core i5 or equivalent processor
Minimum 8 GB RAM
20 GB or more free storage
1366 × 768 or higher display
Keyboard and mouse
Internet connection
GPU recommended for large deep-learning models but not mandatory for traditional ML

8. Advantages of the Project

Automates ECG rhythm classification.
Supports analysis of large ECG datasets.
Detects complex temporal signal patterns.
Reduces repetitive manual analysis effort.
Provides rapid AI-assisted classification.
Can support continuous-monitoring research.
Can combine CNN and LSTM architectures.
Provides waveform and prediction visualization.
Can be extended with explainable-AI techniques.
