1. Abstract

Self-Supervised Learning for Medical Images with Limited Labels is a deep learning project designed to improve medical image analysis when only a small number of labeled images are available. Annotating medical images often requires specialized expertise and significant time, making large labeled datasets difficult to obtain. The proposed system uses self-supervised learning techniques to learn meaningful visual representations from unlabeled medical images before fine-tuning a model on a smaller labeled dataset. Methods such as contrastive learning, SimCLR, and masked image modeling can be applied to medical images, including X-rays, MRI scans, and CT scans. A pretrained CNN or Vision Transformer extracts image features, which are subsequently used for classification or another selected medical imaging task. The system evaluates model performance under different label availability settings using accuracy, precision, recall, F1-score, and other suitable metrics. An interactive dashboard presents prediction results and model comparisons. This project aims to reduce dependence on extensive manual annotation and support research in medical image analysis.

2. Objectives

1. To develop a self-supervised learning framework for medical image analysis.
2. To learn useful image representations from unlabeled medical datasets.
3. To reduce dependence on large labeled datasets.
4. To apply techniques such as contrastive learning or masked image modeling.
5. To fine-tune pretrained representations using limited labeled images.
6. To compare self-supervised learning with conventional supervised learning.
7. To evaluate model performance at different labeling percentages.
8. To develop an interactive dashboard for visualizing results.

3. Existing System

Traditional medical image classification systems primarily rely on supervised learning, which requires large collections of labeled images. Preparing these labels often requires experienced radiologists or medical imaging specialists.

Disadvantages of the Existing System

1. Large labeled datasets can be expensive and time-consuming to create.
2. Expert annotation may not be readily available.
3. Models trained on small labeled datasets may overfit.
4. Limited labels can reduce generalization to unseen images.
5. Manual annotation can slow down research and development.
6. Conventional supervised learning may not fully utilize available unlabeled images.

4. Proposed System

The proposed system uses self-supervised learning to pretrain a model on unlabeled medical images and then fine-tunes it using a smaller labeled dataset.

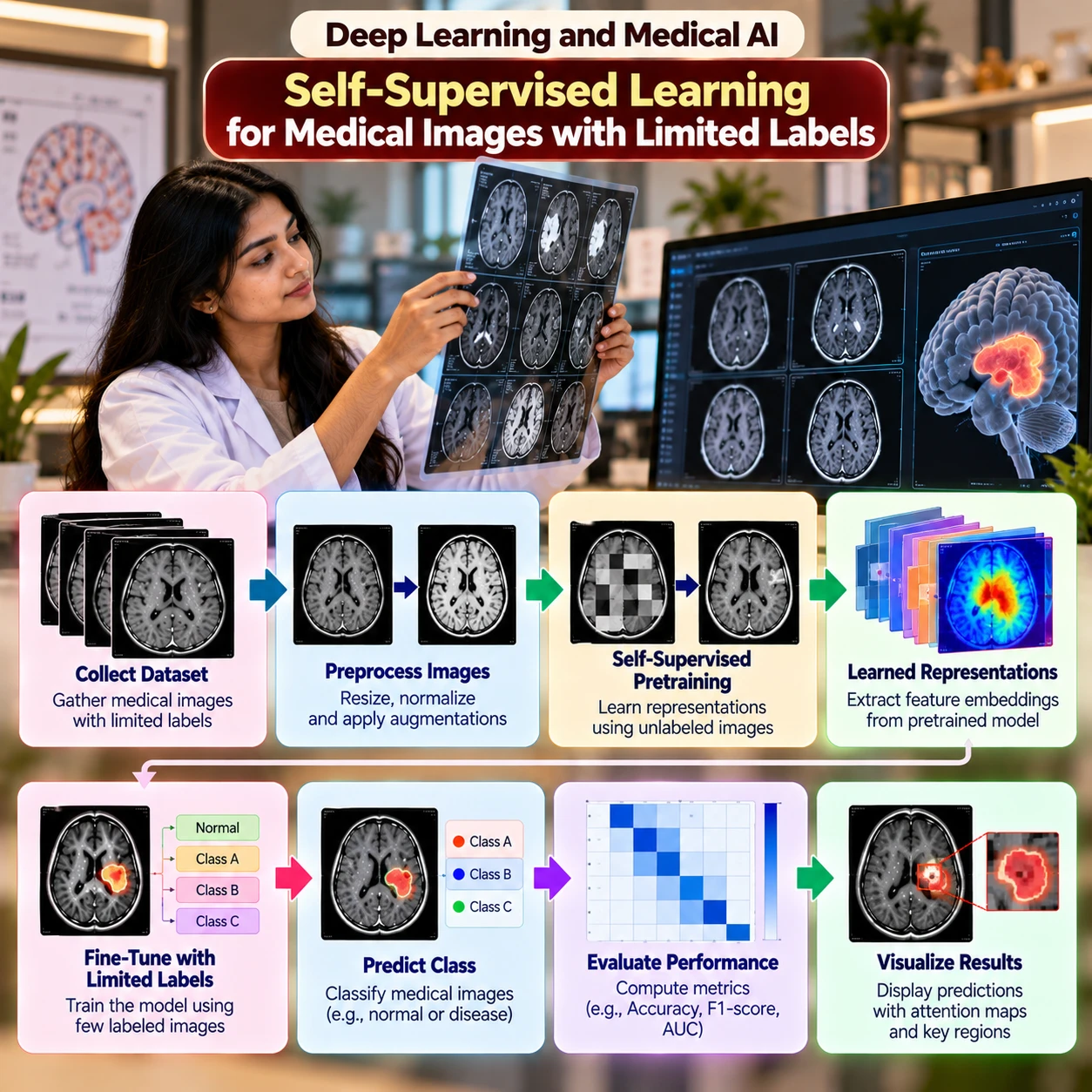

First, medical images are collected and preprocessed through resizing and normalization. A self-supervised learning method, such as SimCLR, learns representations by comparing different augmented views of the same image. Alternatively, masked image modeling can train a model to reconstruct missing image regions. The learned representations are then transferred to a downstream classification model and fine-tuned using a limited set of labeled images.

The system compares the resulting model against a supervised baseline trained using the same labeled data. Performance metrics and learning curves demonstrate how different quantities of labeled data affect model performance. A Streamlit dashboard displays sample images, predictions, and evaluation results.

5. Implementation Procedure

1. Dataset Collection: Obtain a medical image dataset containing both labeled and unlabeled images, such as an appropriate collection of X-rays, MRI scans, or CT scans.
2. Image Preprocessing: Resize images, normalize pixel values, and standardize image formats.
3. Dataset Splitting: Create training, validation, and test sets at the patient level to prevent data leakage.
4. Unlabeled Data Preparation: Use eligible training images without labels for self-supervised pretraining.
5. Data Augmentation: Apply appropriate transformations such as cropping, flipping, rotation, and intensity changes.
6. Self-Supervised Pretraining: Train a model using SimCLR, masked image modeling, or another suitable self-supervised technique.
7. Feature Extraction: Extract learned representations from the pretrained model.
8. Fine-Tuning: Train a classification head or fine-tune selected layers using a limited percentage of labeled images.
9. Baseline Comparison: Train a supervised model using the same labeled subset and compare its performance with the self-supervised approach.
10. Model Evaluation: Measure accuracy, precision, recall, F1-score, and ROC-AUC where appropriate.
11. Dashboard Development: Create a Streamlit application to display predictions, performance metrics, and label-efficiency comparisons.
12. Testing and Deployment: Test the model on unseen patient data and deploy the research prototype locally or on a suitable hosting platform.

6. Software Requirements

7. Hardware Requirements

Recommended: 16 GB RAM, SSD storage, and a compatible GPU for efficient self-supervised pretraining.

8. Advantages of the Project

1. Reduced labeling dependency: Learns from large collections of unlabeled medical images.
2. Improved feature learning: Captures useful visual patterns before supervised fine-tuning.
3. Label efficiency: Enables experiments with limited labeled data.
4. Transfer learning: Reuses learned representations for downstream medical tasks.
5. Performance comparison: Measures benefits against conventional supervised approaches.
6. Flexible applications: Can be adapted to X-rays, MRI scans, CT scans, and other imaging modalities.
7. Scalability: Can utilize additional unlabeled images as they become available.
8. Research support: Demonstrates modern self-supervised learning methods in medical imaging.
9. Interactive visualization: Presents model performance and prediction results through a dashboard.
